Package dimensions: Width 17”; Length 33"; Height 22"
Assembled dimensions: Width 14"; Length 26”; Height 23.2"
Firebox size: Width 9.84”; Length 19.9”; Height 11.81"
Smoke pipe diameter: 3.15”
Length of one smoke pipe segment: 19.09”
Production materials: Stainless steel AISI 430, fire-resistant glass - 0.16" thickness
Gross/Net weight: 30.42/36.16 lbs

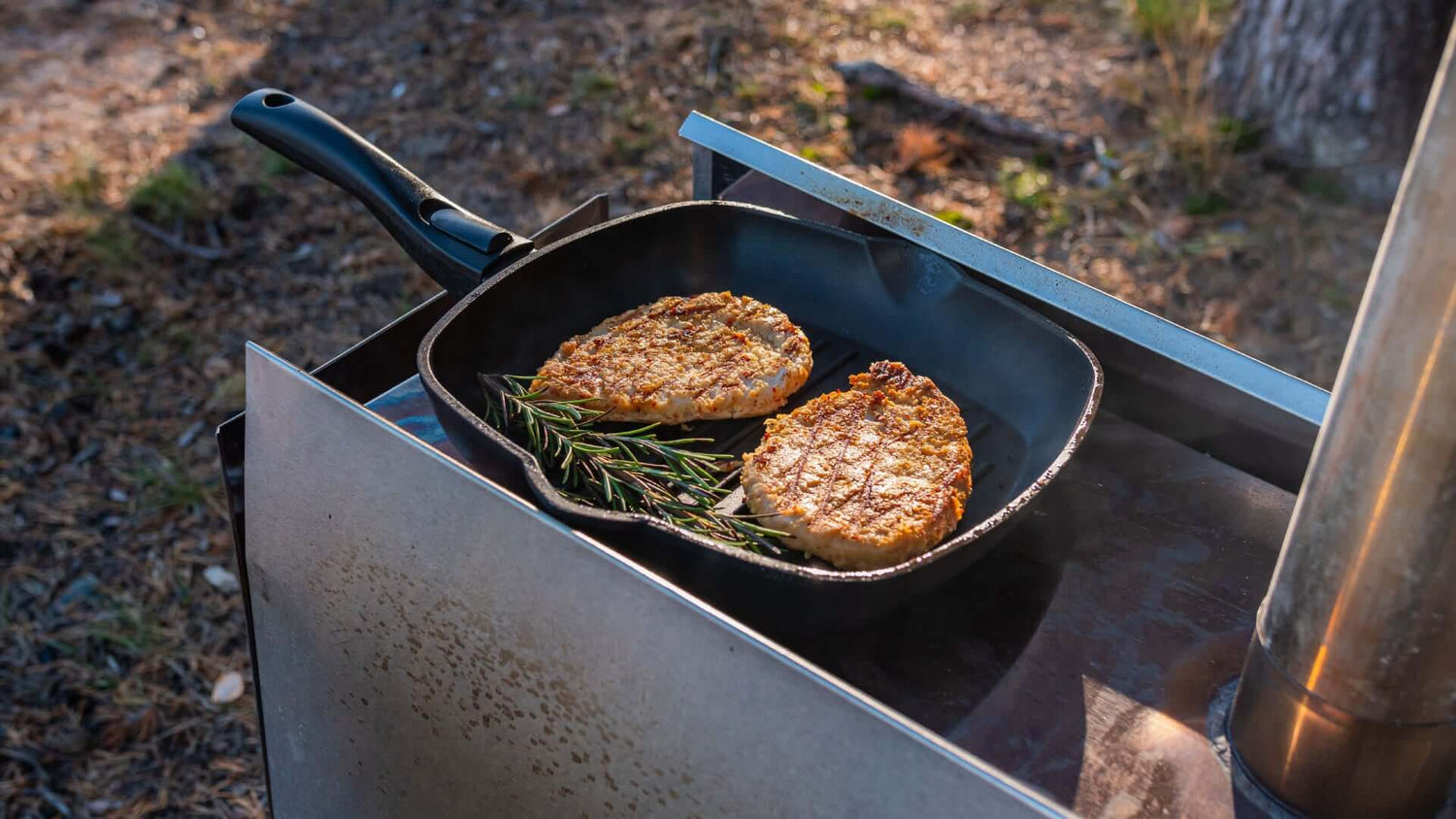

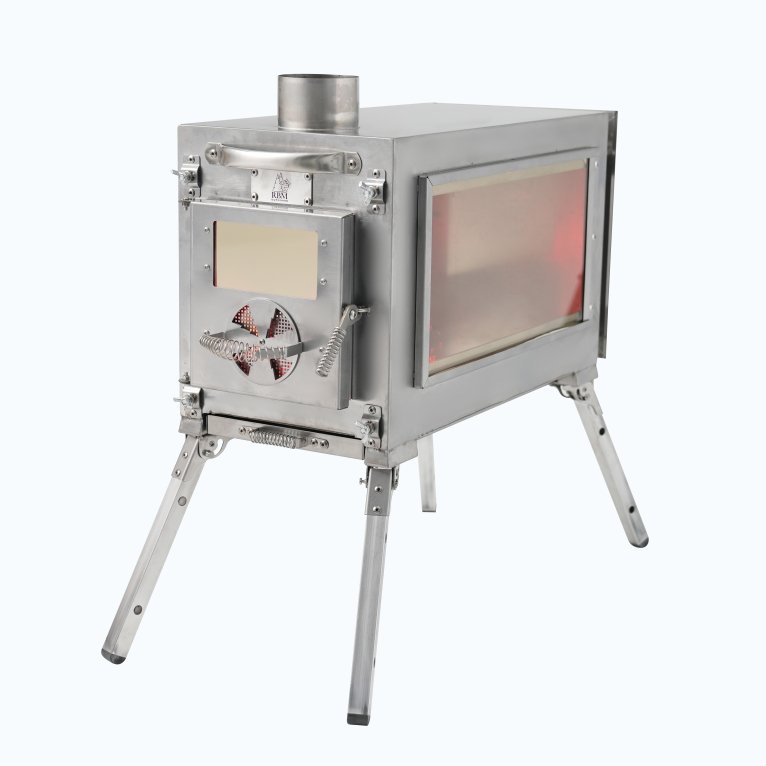

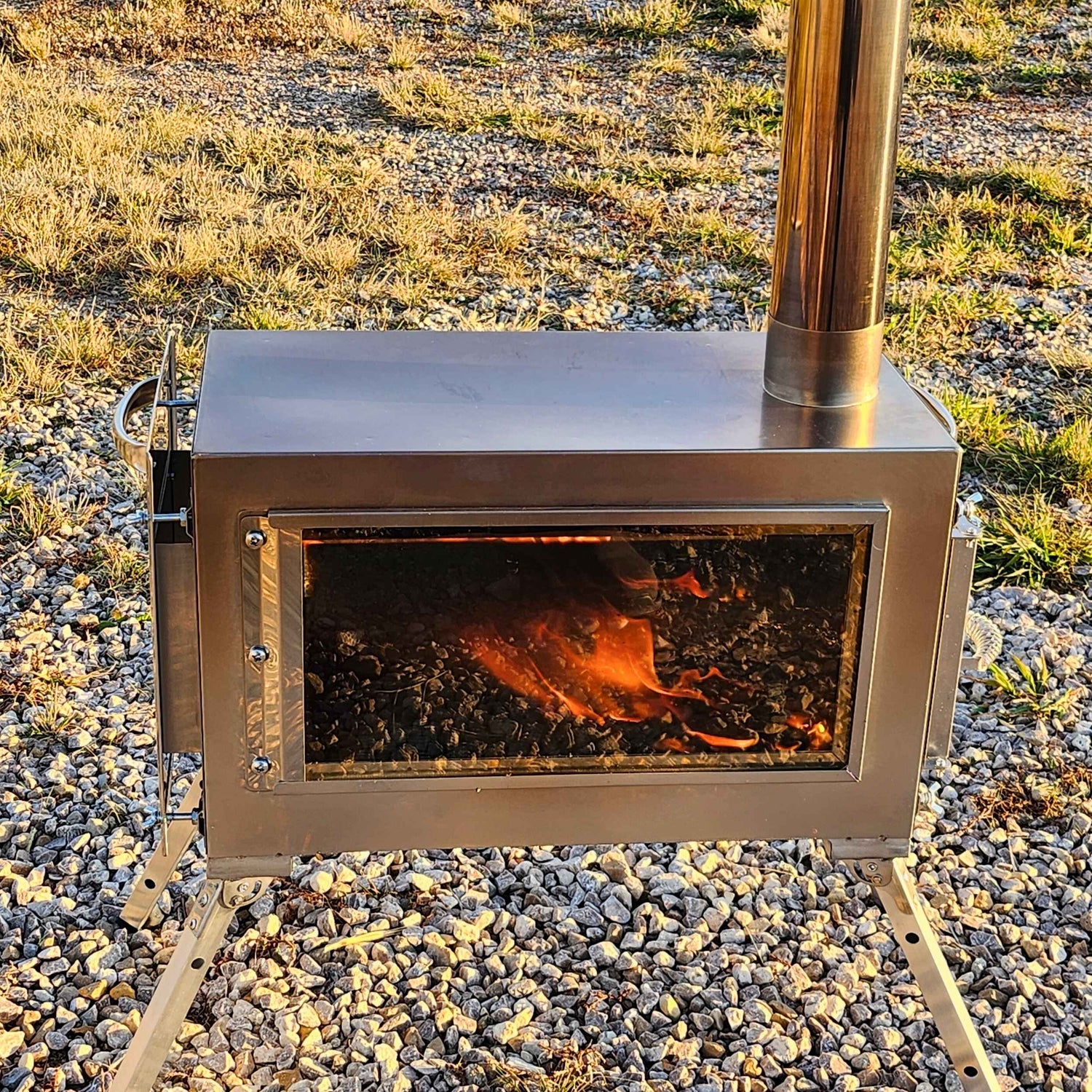

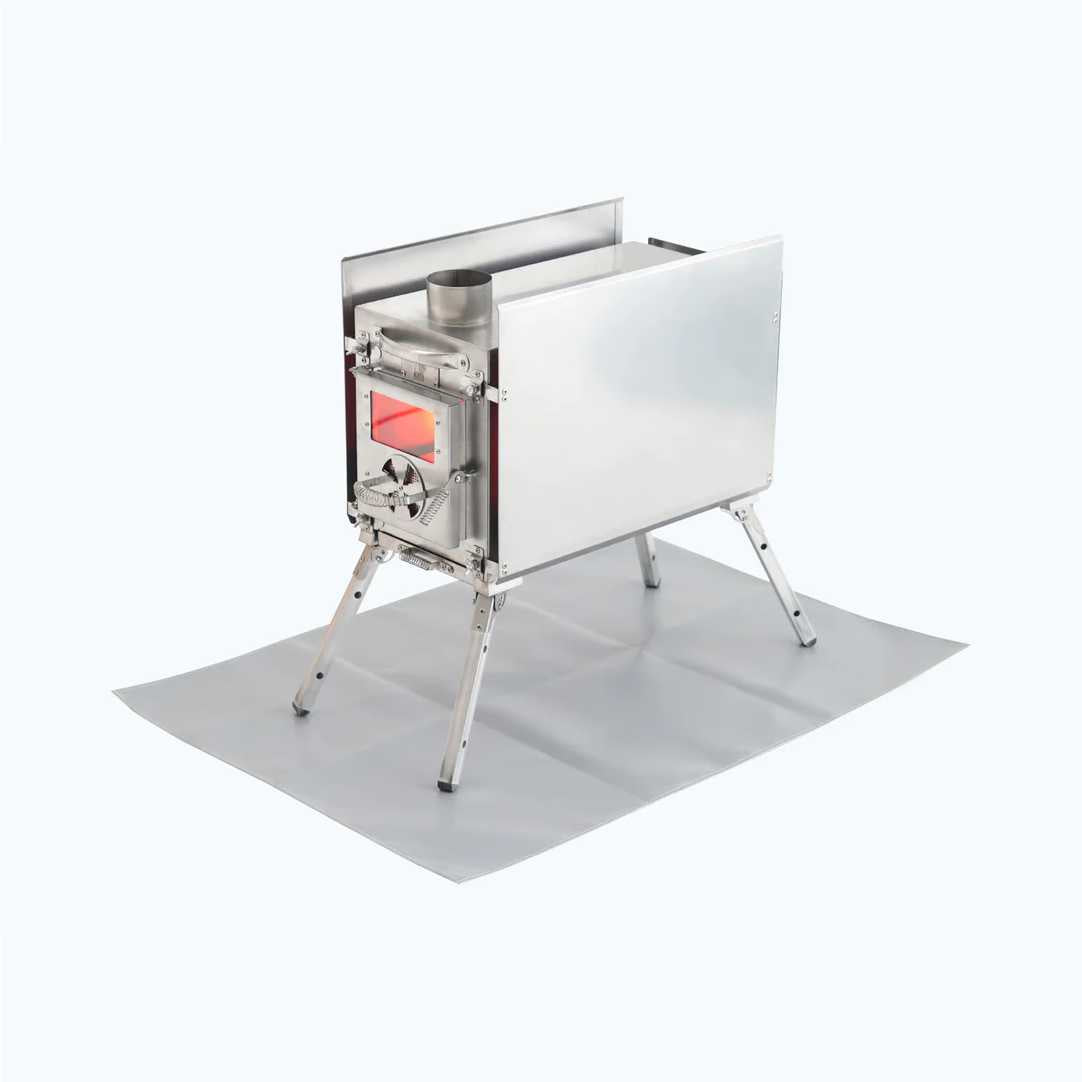

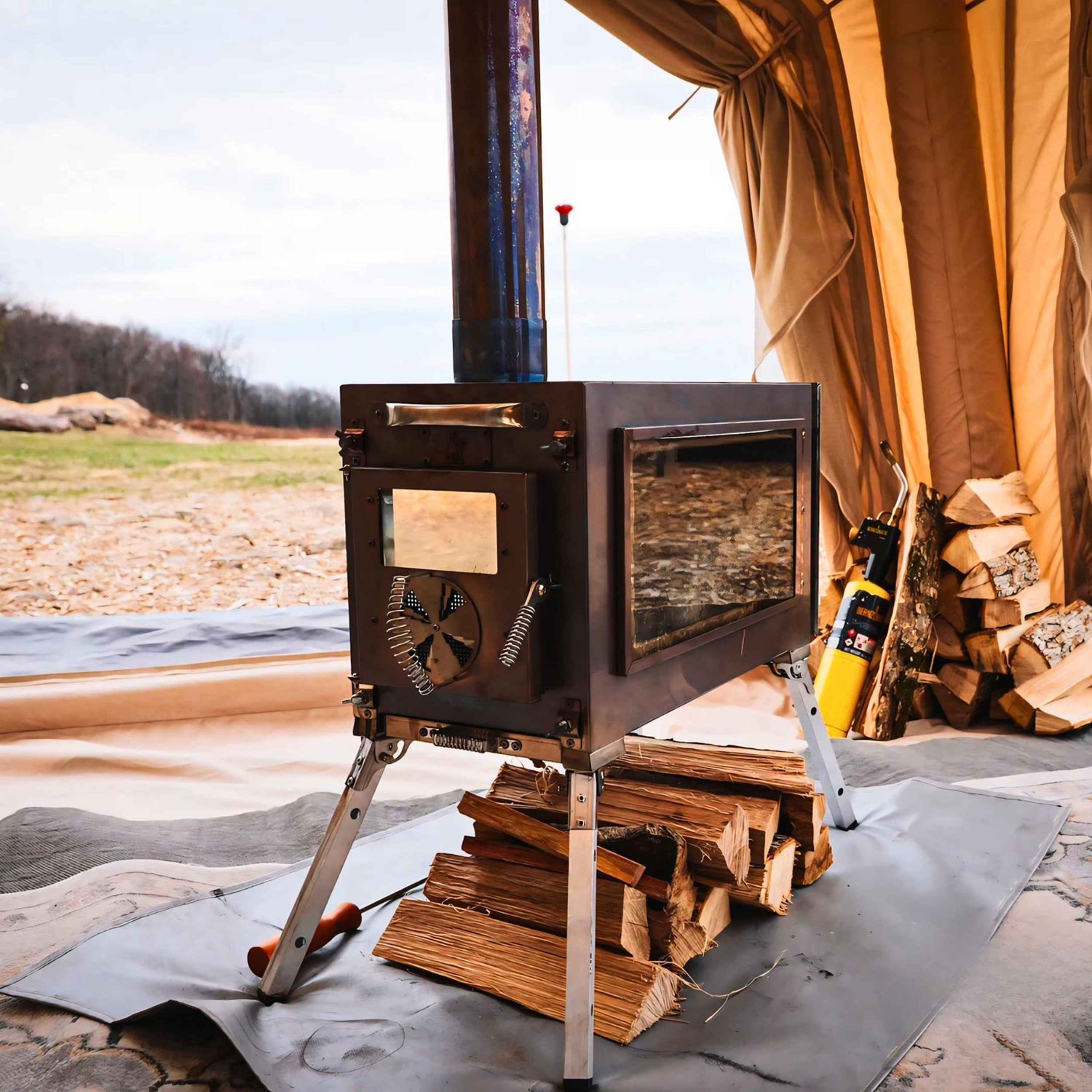

Introducing our medium stove "Caminus M" for heating winter camping tents and cooking. The main feature of the "Caminus" stove is that the side walls are made from heat-resistant ceramic glass. This glass offers superior heat emission compared to conventional steel and also serves as an additional light source inside the tent. The working temperature of the glass reaches up to 1382° F. The transparent glass stove walls are convenient to maintain adequate levels of wood or briquettes inside the firebox.

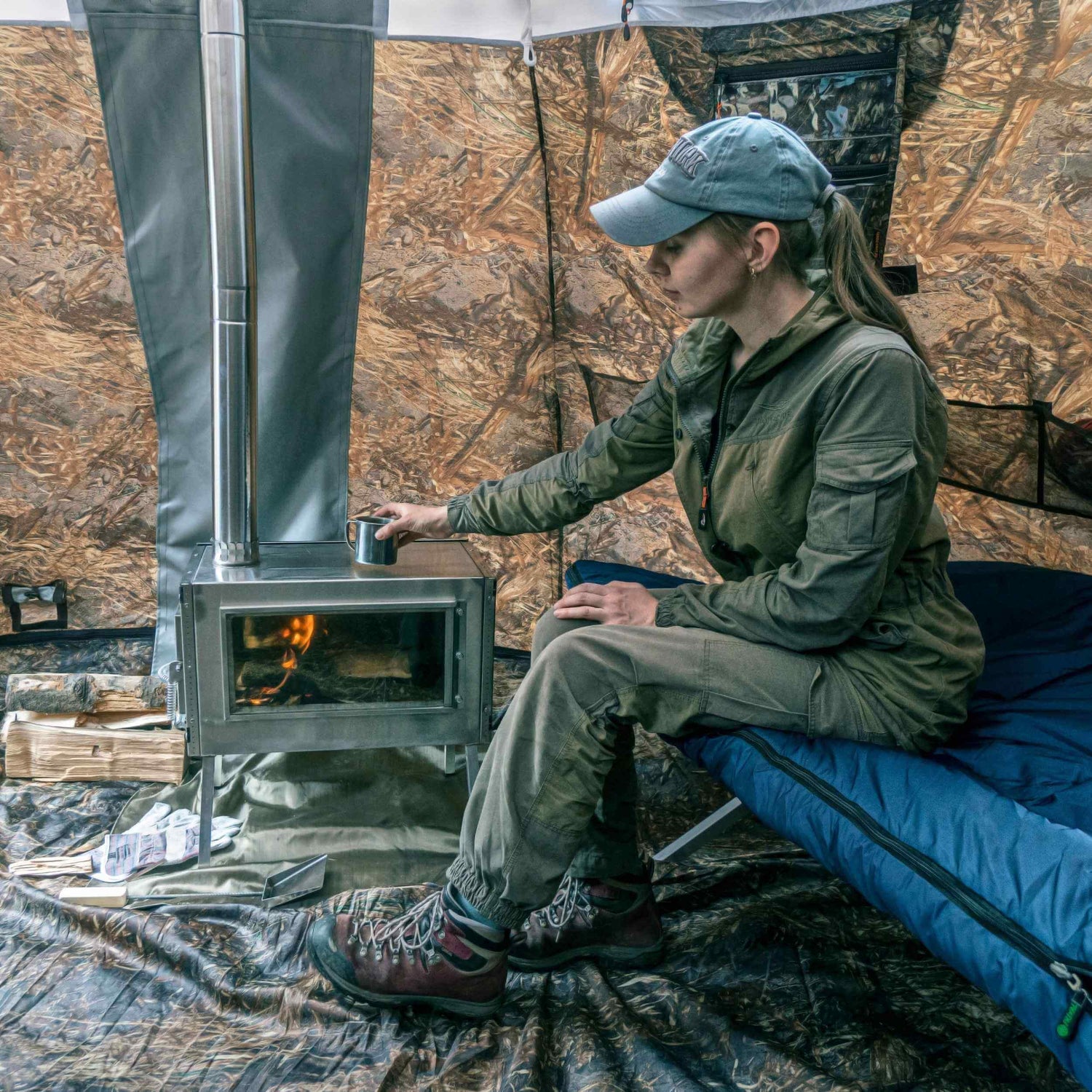

The burning wood provides a pleasant, soft golden light. If you enjoy spending evenings sitting by a crackling fireplace in your home, you’ll love the cozy warmth and cheerful glow of the “Caminus M” stove.
The “Caminus" tent wood stove is the new way to camp.

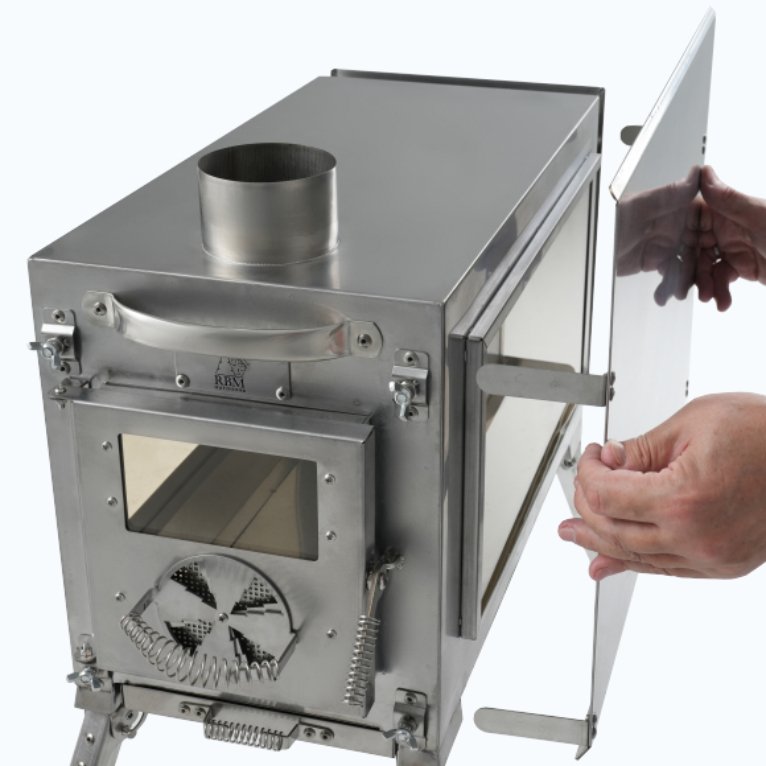

The “Caminus M" stoves are equipped with 4 protective metal shields. These shields protect users from accidentally touching hot surfaces. The lower shield protects the tent floor from heat, the side shields protect the tent wall behind stove from heat, and they also protect the ceramic plates during transportation and storage.

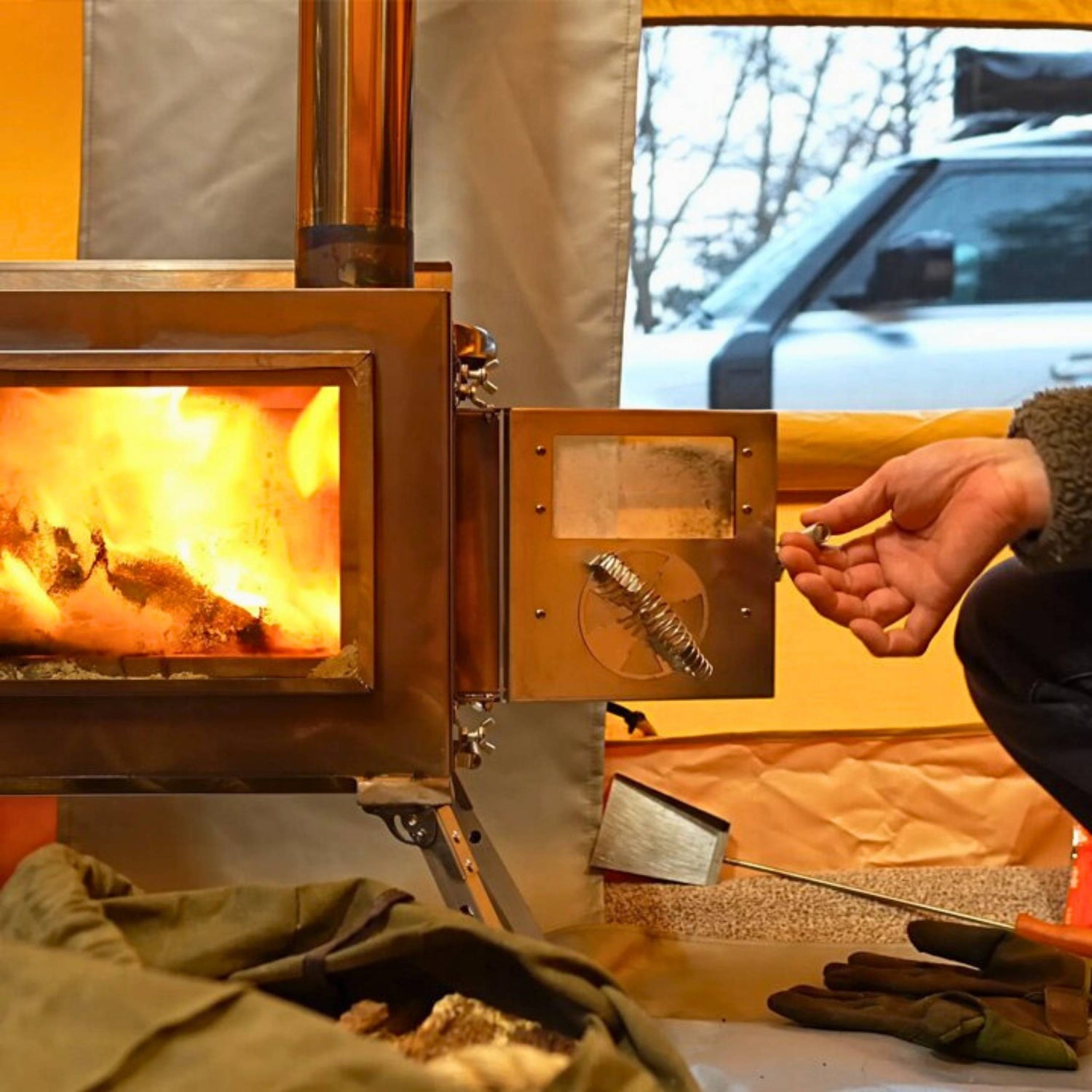

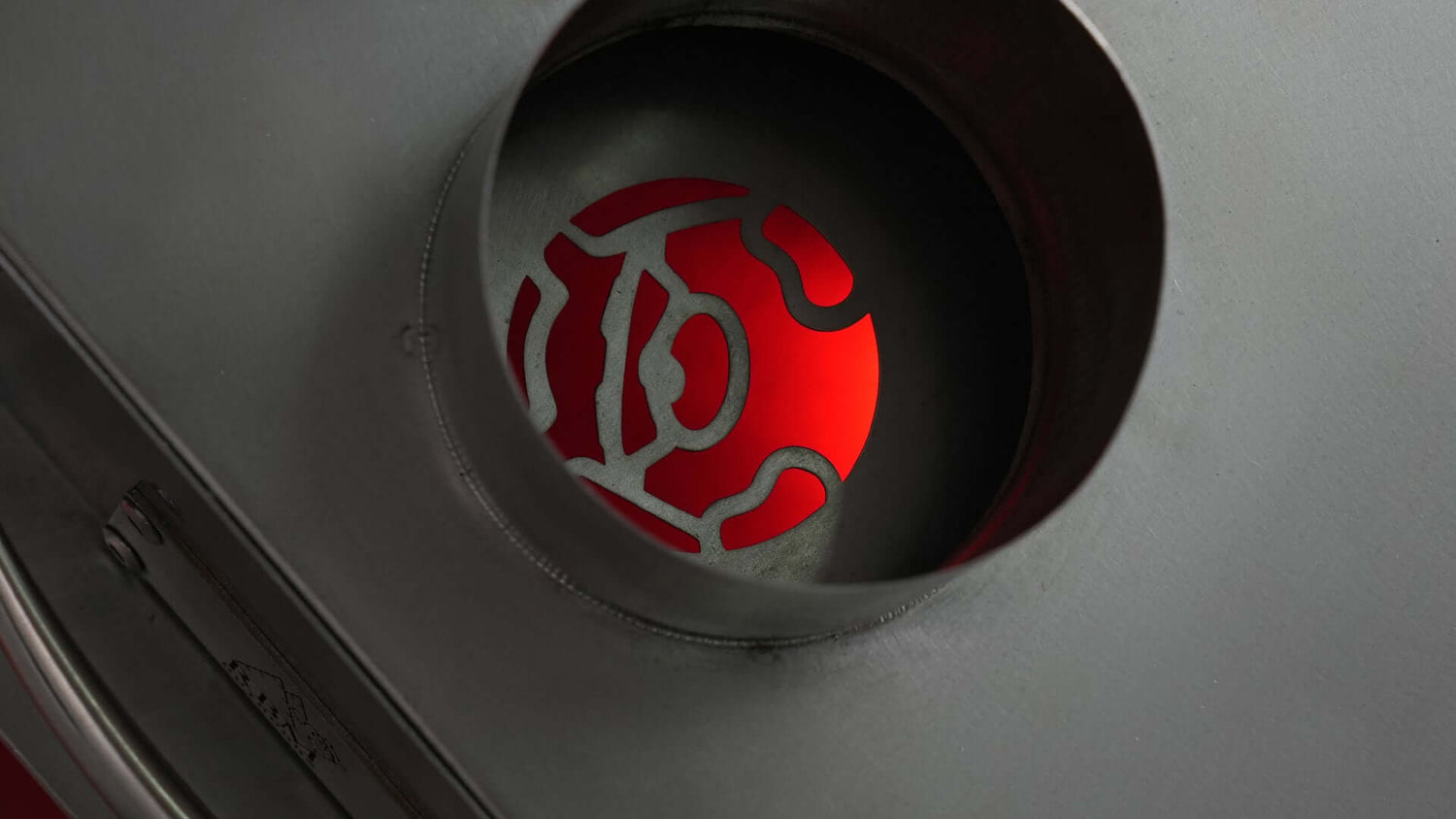

The coil type spark arrestor is built in the upper side of firebox. It splits the firebox into two areas. In the lower main section, there are burning and heat emission processes. The upper section is where the after-burning process occurs. The spark arrestor increases the efficiency of the stove, evenly heats the cooking surface, and protects the outer layer of the tent from sparks.
What happens if the stove is used without a spark arrestor? Sparks can fly out of the smoke pipe, fall onto the tent, and burn holes in it, so the tent can no longer keep the interior warm or protect you from the rain. Unfortunately, many stove manufacturers don’t take this into consideration. We manufacture our stoves using the safest and latest safety standards.
The lower side of the firebox contains two stainless steel plates. These plates are welded at a 45° angle alongside the walls. They act as additional stiffening ribs and also direct wood inside the stove toward the center for full burning.
The stove package includes 2 additional metal plates of the same size as ceramic plates. These plates can be used instead of glass in case the glass is accidentally broken.
Removable aluminum legs are designed for stable and safe positioning of the stove.

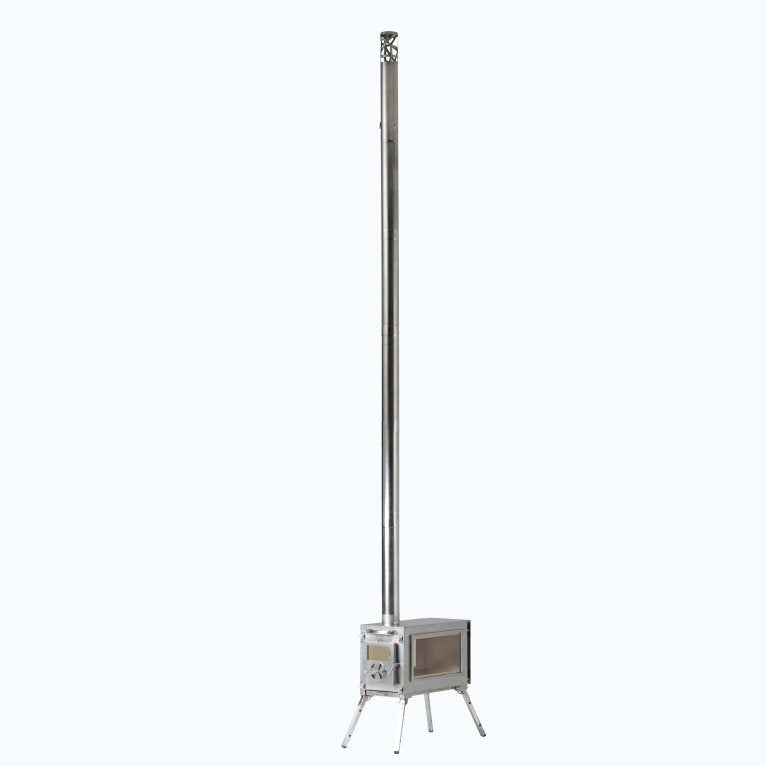

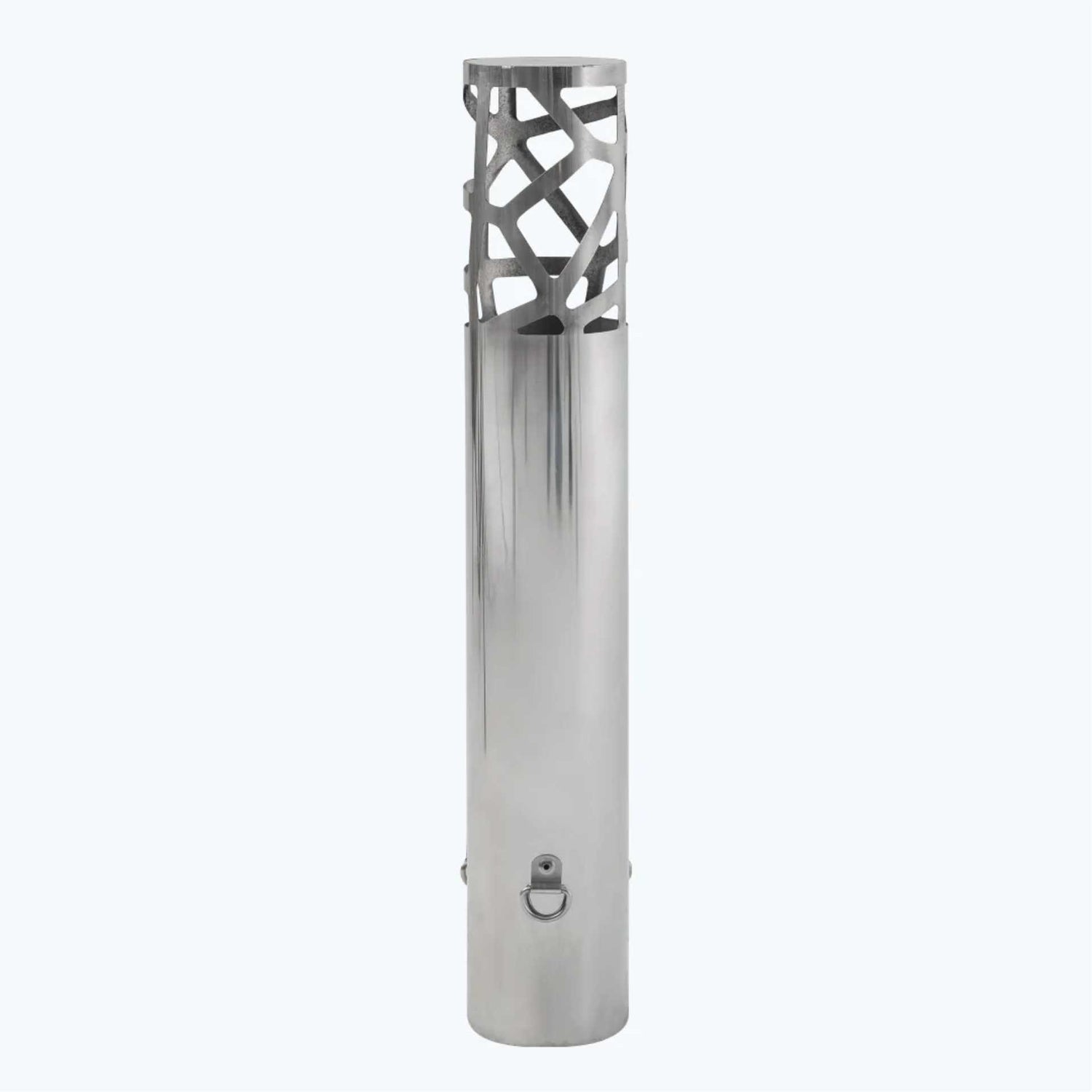

The deflector helps protect the smoke pipe from rain and improves smoke ventilation.

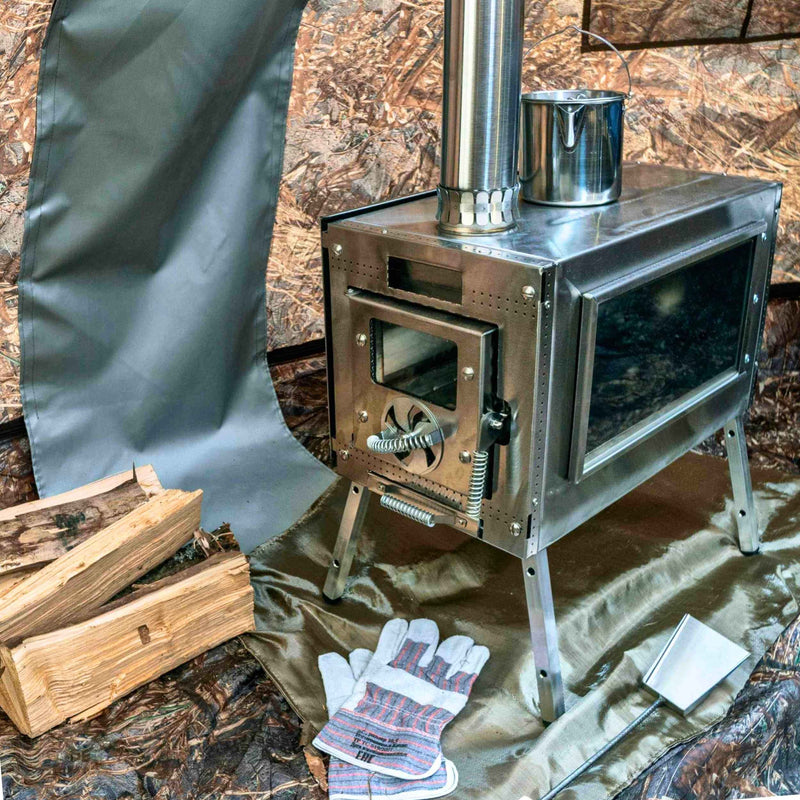

The air damper regulator of the firebox cap regulates the intensity of burning and regulates the temperature inside the tent.
Carrier handles are located on the end walls, which make cleaning ash from the stove easier.
A smoke detector included in the package will sound an alarm if smoke gets inside the tent.
2. Manufacturing materials
The “Caminus M" stove is manufactured from several materials. The stove body is made from 0.04” thick high-tech stainless steel AISI 430.
The heat-resistant glass is 0.16” thick and made in Germany. Areas of contact between the glass and metal are equipped with heat-resistant sealing. Sealing prevents smoke from getting inside the tent and prevents damage to the glass.
Stove integrity is enhanced by argon welding on the bottom side. We also offer a three-year warranty on our "Caminus M" stove.

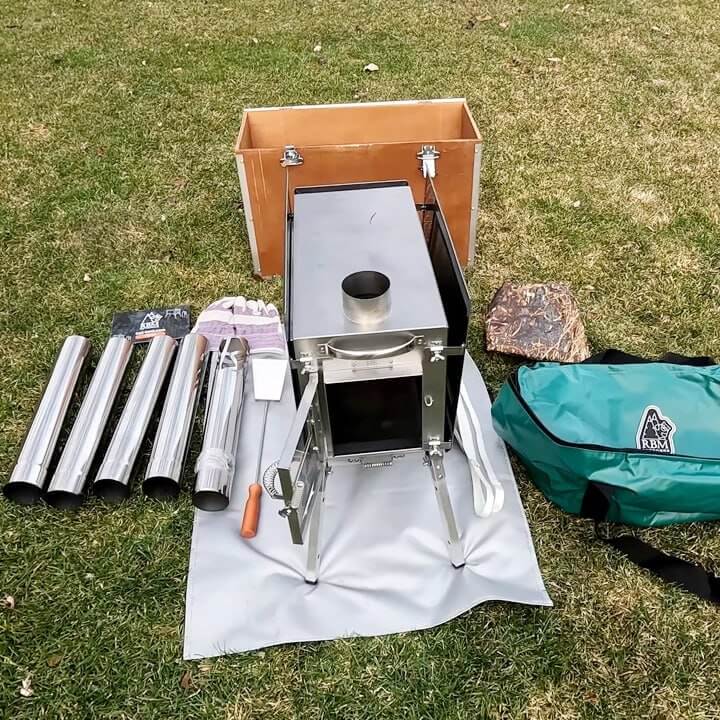

Smoke pipe segments - 5 pieces
Stove legs case - 1 piece
Removable metal shields - 2 pieces
Spare metal shields - 2 pieces
Smoke detector - 1 piece

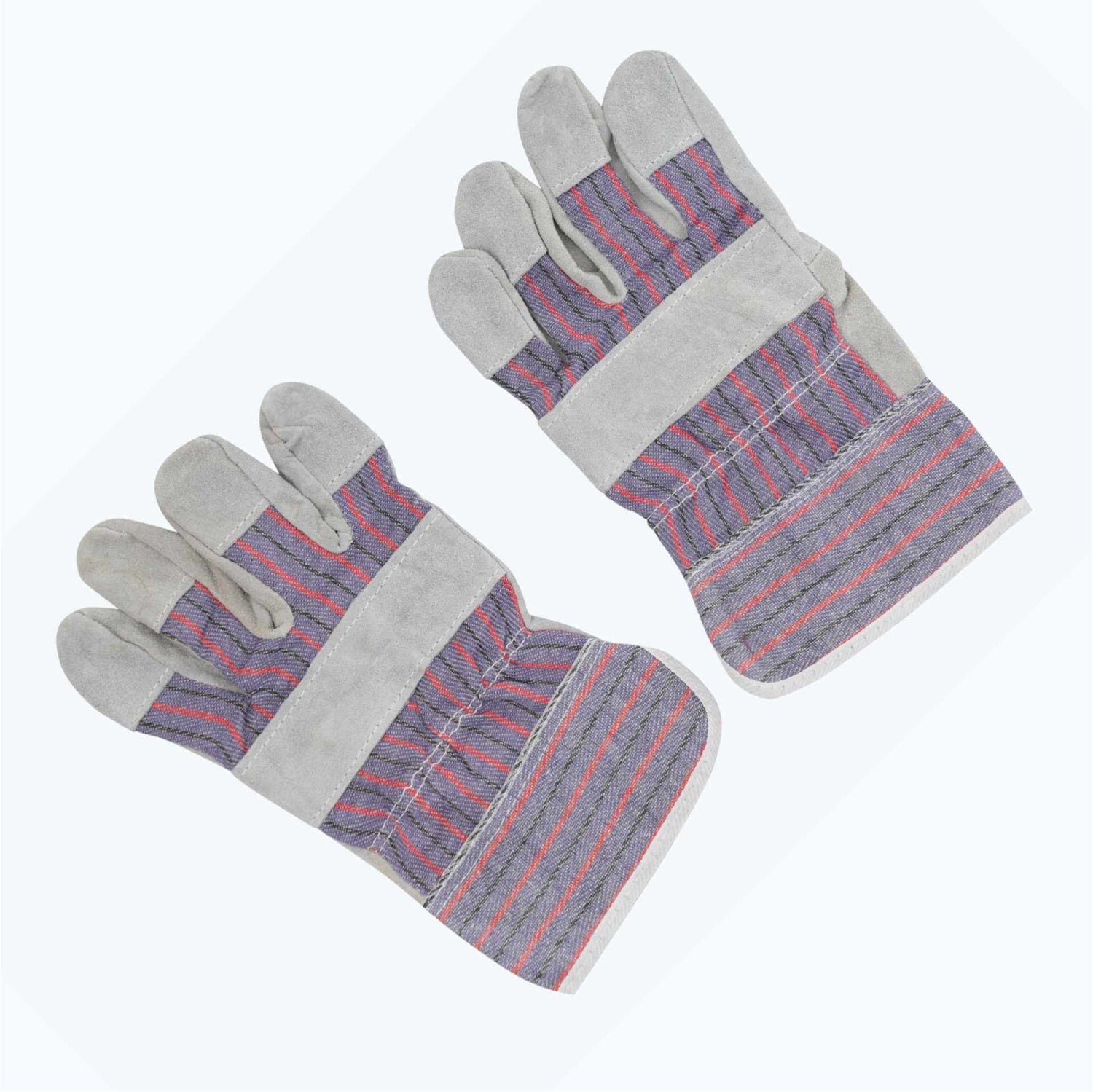

Pair of gloves - 1 piece

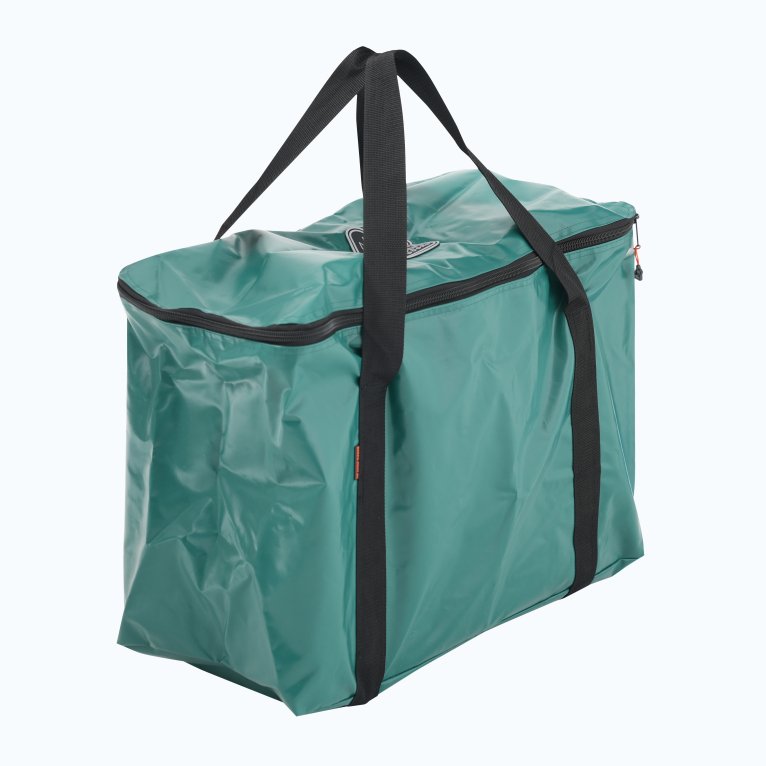

Carrier bag - 1 piece
User manual - 1 piece

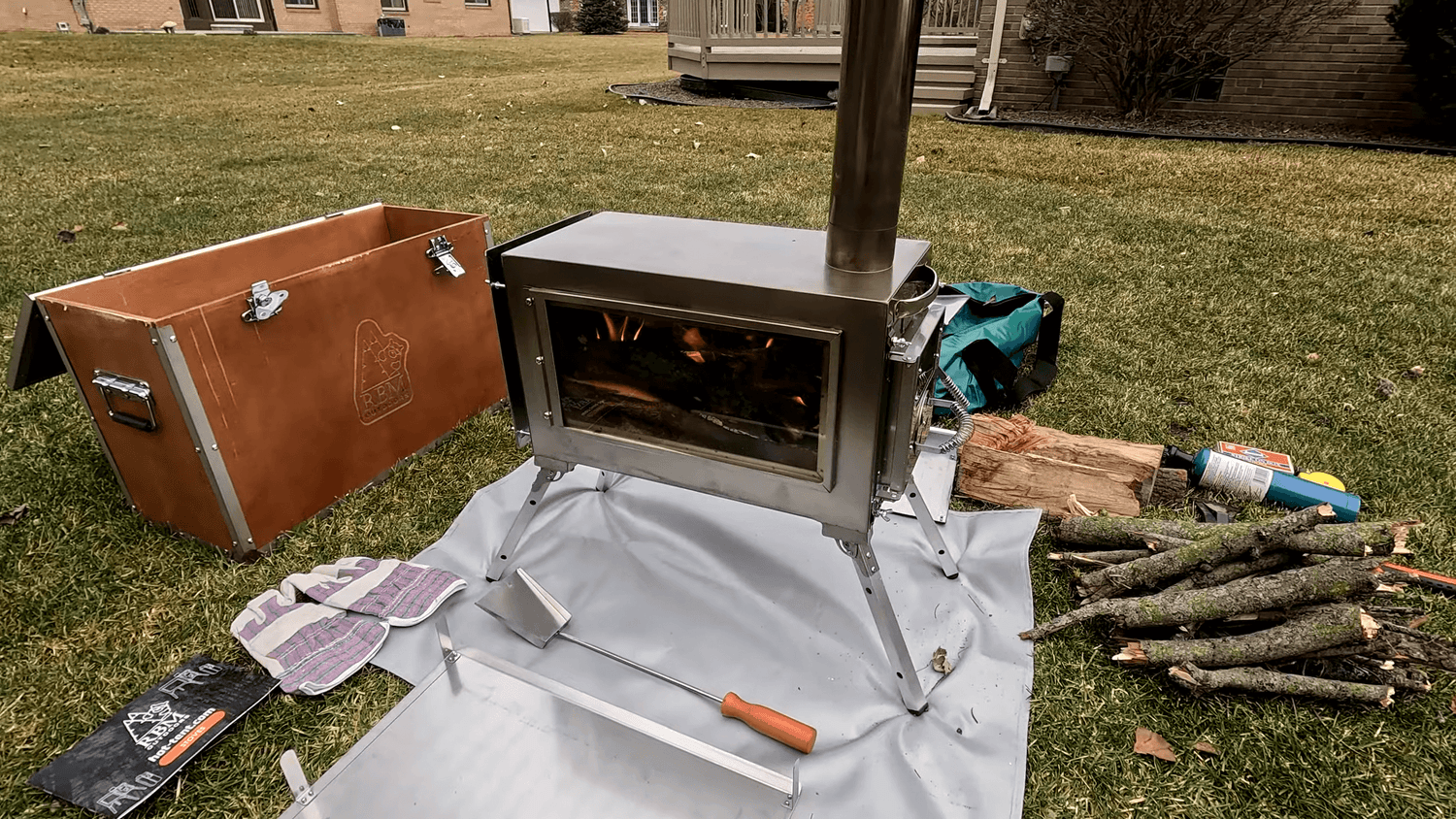

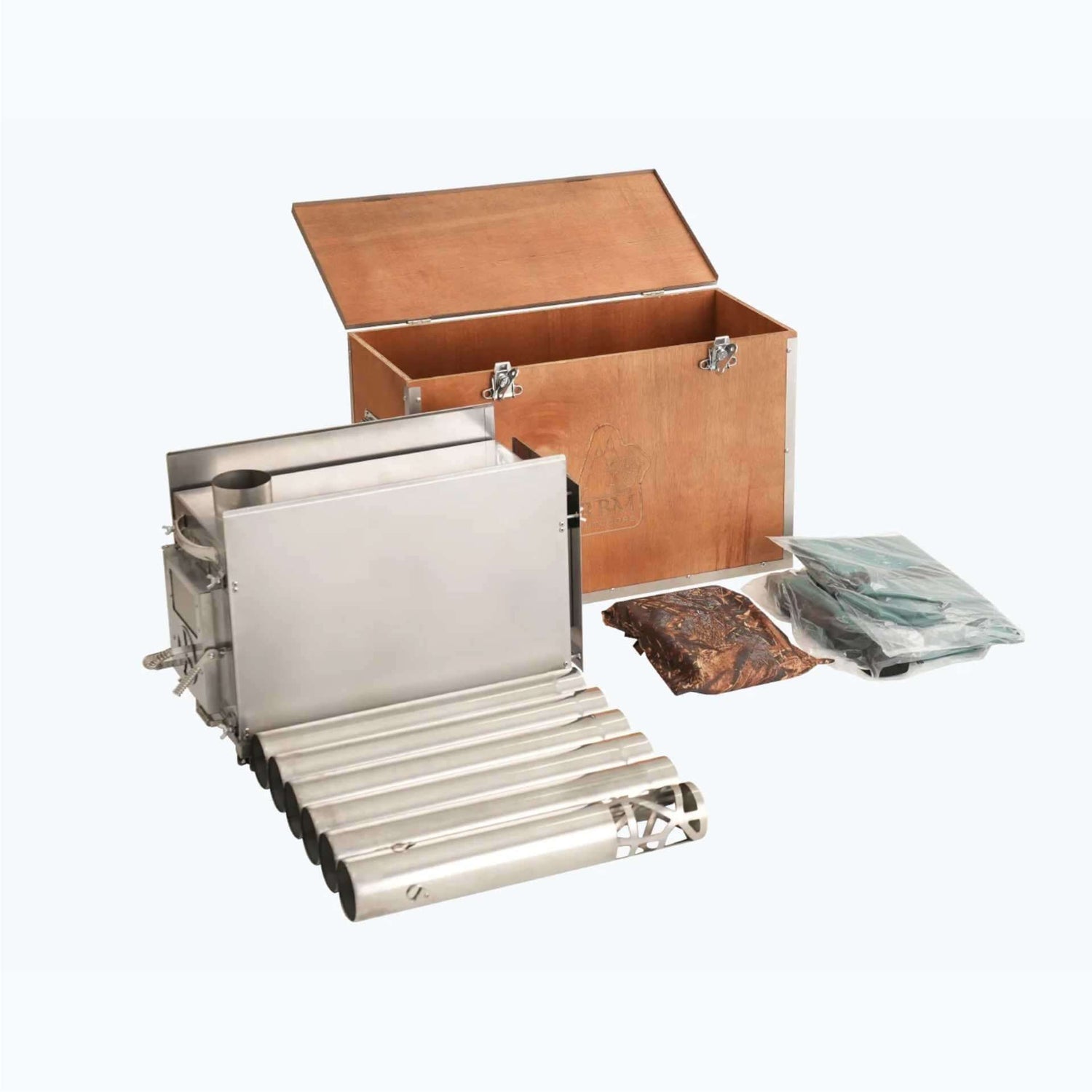

Carrier companies have damaged many of our stoves during shipping. Therefore, we have developed a sturdy wooden box for our stoves. Since the stove should meet strict safety requirements, it must retain its shape and not be subject to severe impact during shipping.
Advantages of buying from us:
1. The stove safely reaches the customer thanks to the wooden shipping box.
2. The stove can be stored and transported in the box to any camping site.
